Get Picture in Picture mode on Window 10. (For All Apps.)

Use Picture in Picture mode Window 10

In Android and iOS, Lots of video streaming Apps started supporting Picture-in-Picture mode. But, when it comes to Windows, only Groove Music and Films & TV apps do support PiP mode. You can activate PiP mode by clicking on the “Play in mini view” option. But not everyone prefers using these two Apps for media consumption. That’s why, In this article, you will get to know, how you can run any App in the Picture-in-Picture mode on Windows 10.

What is Picture-in-Picture in Windows 10, and how it’s useful?.

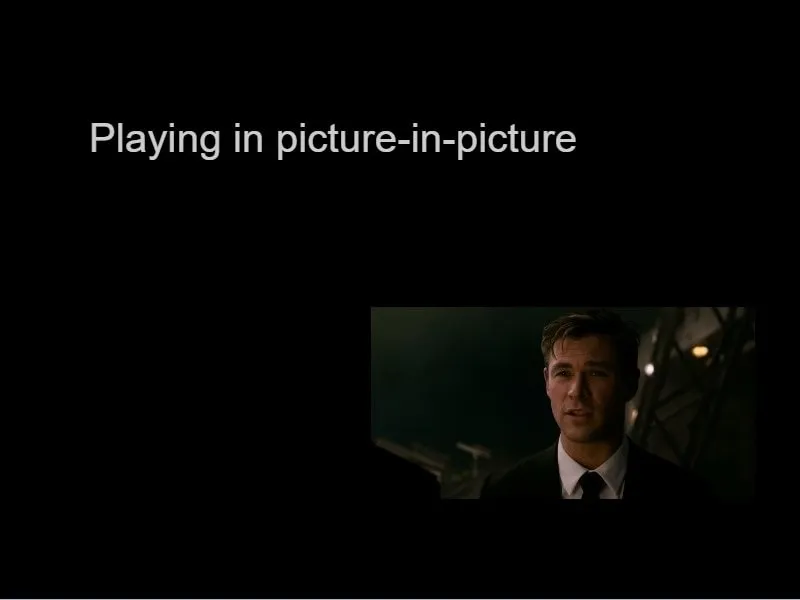

PiP is basically a multi-Window mode, especially used for video playback. It lets the user watch the video in a smaller floating Window while browsing or navigating the content on other Apps.

So, If you like to watch a video while focusing on other work in the foreground. Then, the Picture-in-Picture mode will be useful for you. Means, you no longer have to use split-screen.

Activate Picture-in-Picture Mode in Windows 10.

Windows Native PiP Mode

Before we move on to some third-party tools to get Picture-in-Picture mode in Windows 10. I would first like to talk about Windows in-built PiP mode for local media files. Yes, Windows has introduced a picture in picture mode in Films & TV and Groove Music App. So, If you want to watch any offline video in PiP mode, you can do that easily.

1. First, do open Films & TV app, and play the video that you want to watch in a mini window.

If video is not showing in Films & TV App, then open the folder where video files stored.

Right-Click on the video, and, from the context menu click on Open with > Films & TV.Open with Films & TV App

2. The video will start playing in the native Windows app. From the bottom right corner, click on the “Play in mini view” icon. Play in mini view - Films & TV App

The video will now enter in PiP mode. You can also drag the mini-player anywhere on the screen. And, can expand it to a certain limit.Films & TV App - Picture in Picture Mode

By default, the Films & TV App do not support, HEVC video extension. So, you have to purchase it from Microsoft store.

Official PiP Mode in Chrome Browser.

In Chrome 70, Google has added a built-in PiP feature. That works perfectly fine on YouTube. You just have to install the latest version of Chrome Web Browser. PiP in Chrome works for most of the Websites like YouTube. But, it doesn’t work in other sites like Dailymotion, Prime Video, and Netflix.

To access PiP mode on YouTube. Play any YouTube video in Chrome Browser.

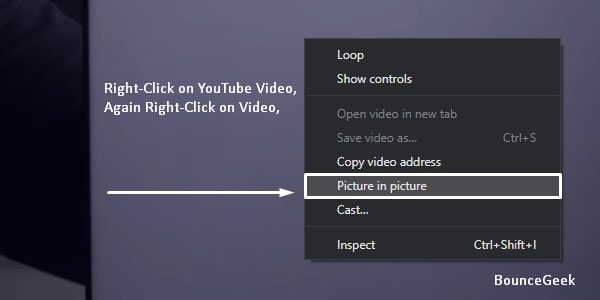

Now, Right-Click two times on the Video. And, you will able to see the “Picture in picture” option. Click on it.Chrome built-in Picture in picture

Note: To PiP mode to get work on any site, video content must be delivered via HTML5.

Picture-in-Picture Extension by Google.

If in Chrome, you want to use PiP mode apart from YouTube. Then, you have to install Extension. The extension will lets you watch videos in a floating window from any site.

1. First, go to Picture-in-Picture Extension (by Google) chrome extension webpage.

Click on Add to Chrome > Add extension.Picture-in-Picture Extension (by Google)

2. This extension does works on a website that has videos from Facebook and YouTube. The extension is working on Prime Video. So, it might work in almost every site.

3. Play the video that you want to play in the mini player. Now, activate Picture in Picture on Chrome by pressing these key combinations.

Windows – Alt + P
macOS – ⌥ + Ppicture in picture mode using Chrome Extension

Alternatively, by clicking on the Picture-in-picture extension icon you can activate PiP. Once, it gets activated, the main video will goes black. And, the video will start getting play in a small floating window. You can also resize the window of the mini player.

Note: PiP works with one video at a time. Means, if a video already playing in a floating window. And, if you try to play another video, then it will replace the first one.

OnTopReplica – PiP App

As I mentioned earlier, Films & TV App required paid codec to play HEVC content. And, almost everyone prefers using VLC or KMPlayer to watch offline videos. So, to get picture-in-picture mode in all App, you can install the OnTopReplica App. It is a free and open-source Windows application that shows a black always-on-top window by default. Users can right-click on that window and pick any pre-opened window of the system.

So the application is very useful for watching the video, monitoring background processes. Apart from PiP mode, the application comes with various features. You can get more information about that from it’s GitHub page.

Note: Make sure Microsoft .NET Framework 4.7. is installed.

1. Go to OnTopReplica GitHub page, and download the latest version zip file from the Assets section.

2. Extract the zip file and run the OnTopReplica setup file. Go through the installation process.OnTopReplica Setup

3. When installation gets complete, search for the “OnTopReplica” App. And, run it as administrator.

You will see a mini window on the screen. That will show you the “Right-Click here to start” message.

4. First, make sure the window that you want to set in PiP mode is opened. After that, right-click on the OnTopReplica window. From the context menu, go to Select Window > select the window that you want in PiP mode. And, click on Whole.Picture in Picture Mode in OnTopReplica App

That’s it, by right-click again on the mini window, you can access more options to customize Picture in Picture mode window.

PiP-Tool (Picture In Picture tool) Windows 10.

As I mentioned, In Windows 10, only two default Apps does support PiP mode. But, with the PiP tool, you can use the Picture in Picture mode on any Windows 10 App or software. This tool will allow you to watch content from any software in mini Window format on the screen.

And, you can continue using any other software with that mini Window. PiP tool allows selecting the area of App, that you want to view in PiP mode. Because of machine learning, the PiP tool can predict selected regions.

Prerequisite for the PiP tool.

  • Microsoft .NET Framework Version 4.7.
  • Windows Vista or Higher. (64-bit.)

1. Download the latest version of PiP-Tool from Github. And, Install it like you install any other Windows software.Install PiP Tool Windows 10

2. PiP tool shortcut will get created on the desktop. Right-click on it and run it as administrator.

3. Now, you will able to see PiP-Tool’s bar at the top of the Windows screen. Click on the drop-down menu, and select the App that you want to open in PiP mode. (Here only all pre-open Apps will appear.)Select App in PiP Tool

4. Once you select the App, you will get the option to select the screen area. That you want to capture in Picture-in-Picture Windows 10.

5. After selecting the area, click on the tick mark in the PiP tool. And, you will successfully get enter into PiP mode.Enter in PiP Mode

I have tried this tool with VLC Player and it was working absolutely fine. This tool doesn’t blackout content from the main screen. It just shows a mirror version in PiP mode. And, you can’t resize mini Window.


So, these are the methods to achieve Picture in Picture mode in Windows. If you want PiP in Chrome, you can use the inbuilt feature. But, it will work only for YouTube. For other sites, you have to install the extension. And, if you want to run any Windows software in PiP mode then, the PiP tool is the best way. If you know any other better method, feel free to comment.
